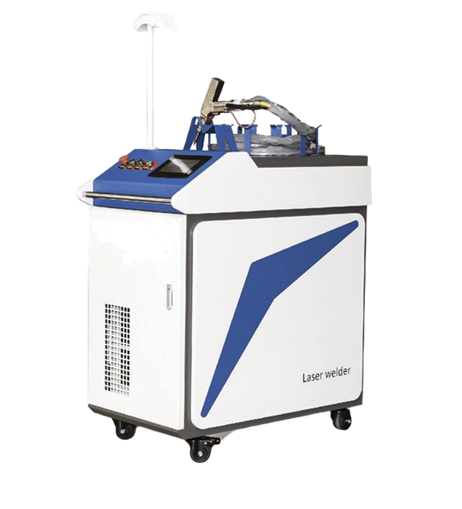

Text Box: FIBER LASER WELDING MACHINE

FEATURES

       Simple operation and longer working life Welding line is small, smooth and beautiful, no deformation, no welding scars, welding firmly.

       Welding speed is fast, 3-10 times faster than TIG welding

       Can be wisely used in many different materials such as stainless steel, iron, galvanized iron and other metal materials

       Low operation, maintenance cost and saving time More safety, Environmental-friendly and Pollution-free.



Specifications

Product Model

1kW

1.5kW

2kW

3kW

Laser source

1000W

1500W

2000W

3000W

Input Voltage

AC220V10% 50/60Hz

1Pha

AC220V10% 50/60Hz

1Pha

AC220V10% 50/60Hz

1Pha

AC220V10% 50/60Hz

1Pha

Laser wavelength

1070nm

Fiber length

10/15m

Welding connector

QBH

Operation mode

CW/Modulate

Cooling method

Industrial thermostatic water tank

Operating temperature

10-4o00 C

Spot diameter

5~7mm

Welding speed

1~120mm/s

Welding line requirements

≤ 0.5mm

Welding thickness range

0.5-2mm

0.5-4mm

0.5-5mm

0.5-8mm

Machine Power

4kW

6kW

9kW

12kW
