MACHINE TORCH FEATURES: · Hypertherm PowerMAX
125 · “Almost” never bends or break · Smooth cutting · Cutting head tilt to achieve 0.2”
cutting gap between flange and cut-line on web. Refer to the picture on the left. With this feature, we can achieve much
closer cut the Ocean Liberator long torch tip. · None-touch probing to enable
automatic measurement of flange tolled angle to compensate for bevel
cuts. This feature does not exist on
the Ocean Liberator. · Automatic edge detection to zero
out the material on the X axis to reduce operator error when lining up by
hand. This feature does not exist on
the Ocean Liberator. · Collision sensors which will stop
the machine if the torch crashes without breaking the torch tips. · Maximum cutting thickness is 1.5”
edge cutting. 1” thick beveling. 1.25” · Cutting speed is the same as Hypertherm specs for PowerMAX 125 |
|
|
CLAMPING
FEATURES: ·
Full stroke hydraulic clamps on both sides. 42” on the larger version, or 32” on the
smaller version. ·
Clamping independently, automatically while program runs |
|
|
OPTIONAL

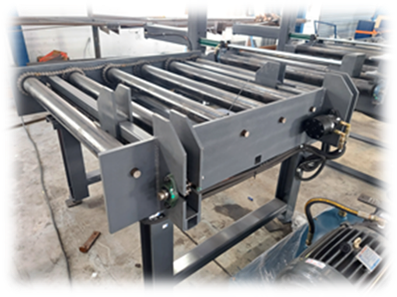

EXTERNAL CLAMPS WITH POWERED ROLLERS ON INFEED AND OUTFEED · This is a patented roller with
clamps to ensure the material coming into the machine will be straight. This is important to ensure cuts to be
almost right on the spot. · This feature is highly recommended
for companies that do beam splitting or castellations. · In addition, it is recommended to ensure material straightness for long heavy pieces. |
|
|
WIRELESS
REMOTE PENDANT ·
Comes with USB charger. ·
Rechargeable ·
Fast and accurate |
|
|
USER-INTERFACE: ·
24” touch screen monitor · Industrial water-proof keyboard · Windows 11 Pro · AMTEK APC1200 Software · DSTV (nc1 files), BCM files, AMTEK
macro files. · AMTEK parametric CAD design
software to make any cuts required. · WIFI, Network ready |
|
|
MEASURING
SYSTEM: · Optional · Comes in 3 options o 64’ on the infeed side (19m) o 44’ on the infeed side (13m) o 24’ on the infeed side (7m) · Automatic feeding · Automatic measurement · Nesting copes |
|
DESCRIPTIONS |
||
|
Cutting
Torch |
Hypertherm
PowerMAX 125 |
|
|
Machine
Dimensions |
84”
x 120” x 108” (2135mm x 3048mm x 2745mm) |
|
|
Cutting
Envelope |
40”
x 40” x 18” (1016mm x 915mm x 460mm) 40”
x 30” x 14” (1016mm x 762mm x 355mm) |
|
|
Operating
System |
Windows
11 |
|
|
Operating
Software |
AMTEK
APC1200 Software |
|
|
File
Format Compatible |
NC1,
Tekla, DSTV, SDS2, Structural CAD |
|
|
Cutting
Thickness |
0.125
– 1.25 inch (3mm – 32mm) |
|
|
Cutting
Speed |
0.25
– 2.25 inch (6mm – 60mm) per second |
|
|
Bevels |
+/-
45 degrees |
|
|
Cutting
Accuracies |
+/-1/16
(+/- 2mm) |
|
|
Materials
type |
Beams,
Channels, Angles and tubes |
|
|
Cutting
orientations |
3
sides (top flange, web, and bottom flange) |
|
|
Machine
weight |
3500
lbs. (1.5 tons) |
|
|
Power
Requirements |
380/50Hz
or 480/60Hz 3 Phase 60 amps |
|
|
Infeed
rollers |
Optional
60ft (18m) or 40ft (12m) |
|
|
Outfeed
rollers |
Optional
60ft (18m) or 40ft (12m) |
|
|
Measuring
System |
60’
(18m) or 40’ (12m) |
|
|
Remote
pendant |
Wireless |
|
|
Cut
libraries |
Programmable |
|
|
Material
probing and detection |
Included |
|
|
Clamping |
Full
stroke hydraulic clamping |
|
|
Manufactured |
Riverside,
California USA |
|
|
|
TIME STUDY: · W12x40 · 2
minutes each end · Fully
automatic a piece will take approximately 8 minutes for both ends. · Our
machine DO NOT CUT DRILL HOLES · Our
machine DOES cut HOLES and SLOTS with thermal cutting quality. |
|
|
|
TIME STUDY: · W18x119 · 4
minutes each end · Fully
automatic a piece will take approximately 12 minutes for both ends. · Our
machine DO NOT CUT DRILL HOLES · Our
machine DOES cut HOLES and SLOTS with thermal cutting quality. |
|
|
|
TIME STUDY: · W18x76 · 12
minutes each end · Fully
automatic a piece will take approximately 30 minutes for both ends. · Our
machine DO NOT CUT DRILL HOLES · Our
machine DOES cut HOLES and SLOTS with thermal cutting quality. |
|
|
|
TIME STUDY: · TUBE
12x4 · 3
sides cut, 1 minute each side · Bottom
side needs flipping so it depends on how fast the operator can flip the
material to cut. · WE RECOMMEND OUR
FIBER-LASER TUBE CUTTING MACHINE FOR THIS JOB. |
|
|
|
TIME STUDY: · MC12x10.6 · 1
minute each end · Fully
automatic with pre-heat and operator’s start signal, a piece will take
approximately 6 minutes for both ends. · DRILLED
HOLES ARE NOT DONE ON THIS MACHINE · Our fiber-laser tube
cutting machine can easily accomplish this with DRILL-QUALITY HOLES |
|
|
|
TIME STUDY: · A6x6 · 30
seconds each end · Fully
automatic a piece will take approximately 6 minutes for both ends. · DRILLED
HOLES ARE NOT DONE ON THIS MACHINE |
|
